| 材料: U2 :CM490 U3 :CM690 |
| 表面处理: 黑漆,原色 |

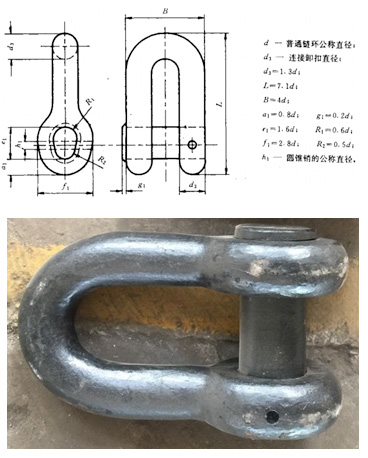

| 规格mm | 单重(KG) | 规格mm | 单重(KG) | 规格图示 |
| φ12.5 | 1.1 | φ60 | 48.0 |  |
| φ14 | 1.2 | φ62 | 52.0 | |
| φ16 | 1.3 | φ64 | 57.0 | |
| φ17.5 | 1.6 | φ66 | 60.0 | |
| φ19 | 1.8 | φ68 | 70.0 | |
| φ20.5 | 2.1 | φ70 | 75.0 | |
| φ22 | 2.6 | φ73 | 90.0 | |
| φ24 | 3.5 | φ76 | 97.0 | |
| φ26 | 4.3 | φ78 | 100.0 | |
| φ28 | 5.0 | φ81 | 108.0 | |
| φ30 | 7.0 | φ84 | 124.0 | |
| φ32 | 7.5 | φ87 | 139.0 | |
| φ34 | 9.5 | φ90 | 154.0 | |
| φ36 | 11.0 | φ92 | 171.0 | |
| φ38 | 13.0 | φ95 | 201.0 | |
| φ40 | 15.0 | φ97 | 214.0 | |
| φ42 | 17.5 | φ100 | 235.0 | |
| φ44 | 20.0 | φ102 | 249.0 | |
| φ46 | 23.0 | φ105 | 272.0 | |
| φ48 | 26.0 | φ107 | 287.0 | |
| φ50 | 29.0 | φ111 | 325.0 | |
| φ52 | 31.0 | φ114 | 345.0 | |
| φ54 | 34.0 | φ117 | 365.0 | |
| φ56 | 38.0 | φ120 | 400.0 | |
| φ58 | 44.0 | φ122 | 425.0 |
